Original Line Electric® Actuator

The Original Line Electric® Thruster is a rugged, guided actuator with an OLE cylinder integral to the thruster block. With many types and options to choose from, it offers many variations that allow selection of the most appropriate type to match your unique application needs. They're ideal for applications seeing significant side loading and require greater control and enhanced flexibility.

  • Large load capability
  • Rated moment load to 3000 in-lbs
  • General Duty & Heavy Duty versions available
  • Standard, precision and harsh environment types available
  • Bore sizes/Thrust ranges: 1.5"/up to 75 lbs, 2"/up to 150 lbs, 3"/up to 350 lbs
  • Ball bearing types for less friction, faster motion and additional precision

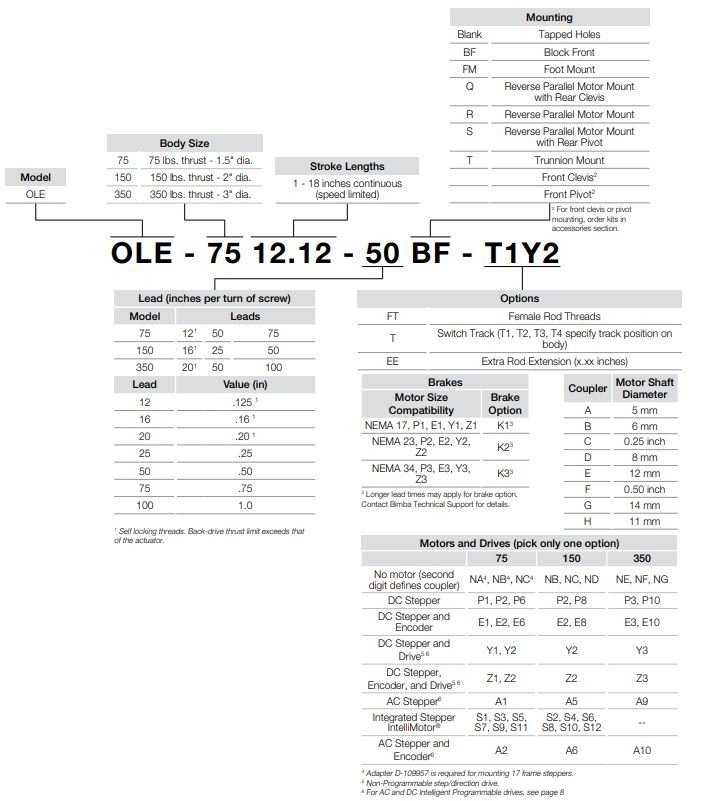

The model number of all Original Line Electric® Actuators consists of alphanumeric clusters designating product type, body size (number designates maximum thrust capacity in pounds), stroke length, lead, mounting style, motor type and configuration, and options. The example below describes OLE-7512.12-50BF-T1Y2, a 75 pound maximum thrust model with 1.5 inch diameter body, 12.12 inch stroke, 0.50 inch lead, block front mount, switch track, 23 frame  stepper motor with encoder, and driver.  Piston magnets are included.
