I-MPVG Series Inline Miniature Plastic Vacuum Generator

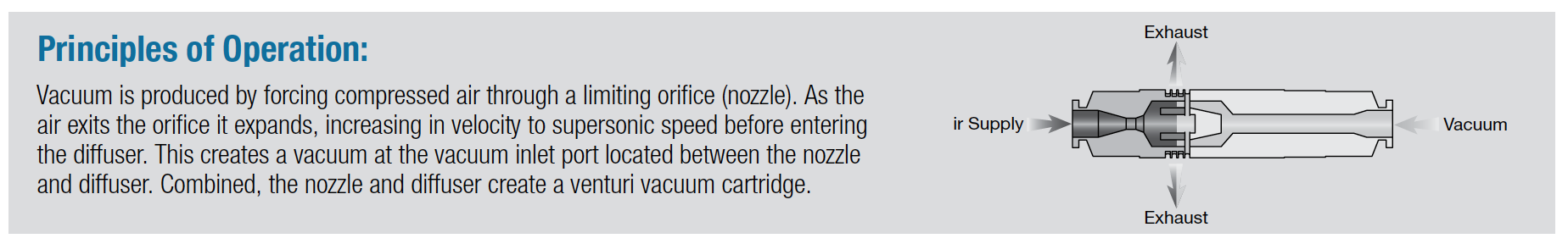

These single-stage venturi pumps offer a simple compact design and are the same size as the air supply and vacuum lines allowing installation in the tightest spaces. The I-MPVG-B and I-MPVG-T models contain a built-in silencer. All I-MPVG Series pumps are metric only. The I-MPVG Series feature a single-stage design with no moving parts to wear out. Simply supply compressed air and vacuum lines to the pump – push-to-connect fittings provide quick and simple connections.

  • Powerful vacuum up to 27.1”Hg [918 mbar]
  • Built in muffler
  • Integrated mounting holes
  • Light weight and compact for point of use installation
  • Installs inline for simple integration

I-MVPG Inline Pump Standard Specifications

Pump Material: Anodized Aluminum, Buna-N O-ring, Nylon

Medium: Filtered (50 micron) un-lubricated, non-corrosive dry gases

Operating Temperature: -30° to ~250F [-34° to ~121°C]

Operating Pressure: 72 PSI [5.0 bar]



Performance Level Designations

I-MPVG-B models 27.1”Hg [918mbar] for high vacuum / standard flow applications
I-MPVG-T & I-MPVG-I models 26.8”Hg [908mbar] for high vacuum / standard flow applications


I-MPVG Inline Pump Operating and Installation Requirements

Supply Line: 6mm O.D. tube

Vacuum Line: 6mm O.D. tube

Exhaust Valve: 8mm O.D. tube (I-MPVG-T model only)

Vacuum Line Filtration: Typically vacuum filters are not required, if desired Bimba recommends model VF125LPM (see In-Line Filter Page)

Item: I-MPVG-B-55H
