High Vacuum Venturi Vacuum Pump Series - HVP

Bimba’s HighVac Series venturi vacuum pumps offer the highest vacuum level performance available with any air-operated pump. The HighVac Series of pumps is capable of delivering vacuum levels up to 29.5”Hg [999mbar] at 3 vacuum flow rates. Ideal for small shops, labs and recharging HVAC systems.

  • High performance – powerful vacuum up to 29.5"Hg [999mbar]
  • Fast response time – no delay due to long plumbing lines, mounts in-line
  • Efficient minimal air consumption
  • Compact, lightweight and modular – easy to install
  • Safe operation – no electricity needed at the pump
  • Reliable – operates trouble-free: no maintenance or downtime

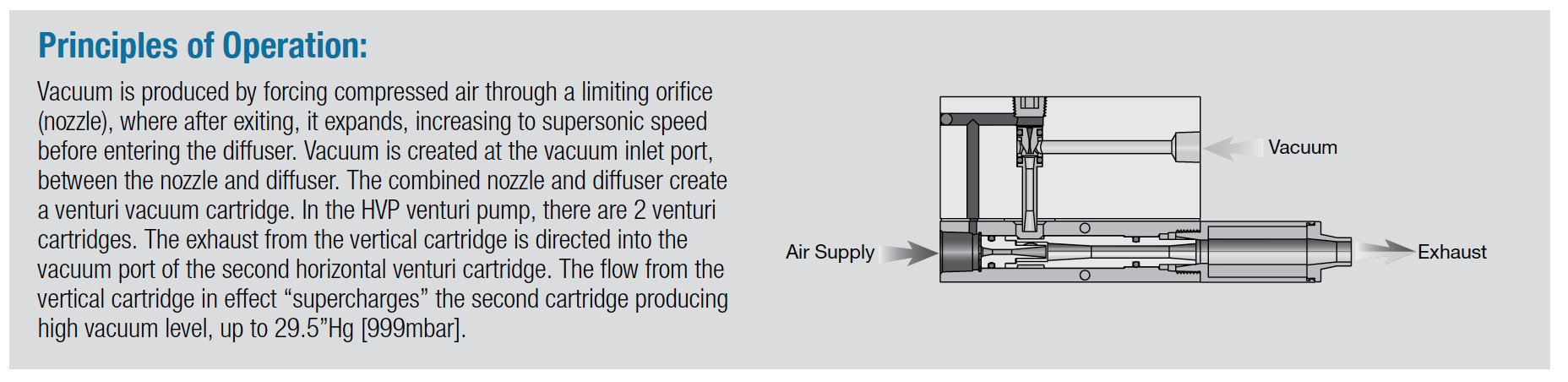

HVP HighVac Pump Standard Specifications

Body Material: Anodized Aluminum (for silencer material see Silencer Page)

Cartridge Material: Nylon, Buna O-Ring
O-rings available in additional materials - Consult factory for availability

Medium: Filtered (50 micron) un-lubricated, non-corrosive dry gases

Operating Temperature: -30° to ~250°F [-34° to ~122°C]

Operating Pressure: 80 PSI [5.5 bar] or 60 PSI [4.1 bar] – Consult Factory for other operating pressures


HVP HighVac Series Operating and Installation Requirements

Vacuum & Supply Line HVP 100/200: 3/8” O.D. [10mm] tube

Vacuum Line Filtration HVP 100/200: Typically vacuum filters are not required, if desired Bimba recommends model VF250F (see In-Line Filter Page)

Vacuum & Supply Line HVP 300: 3/8” O.D. [10mm] tube

Vacuum Line Filtration HVP 300: Typically vacuum filters are not required, if desired Bimba recommends model VF375F (see In-Line Filter Page)

Mounting Screws: HPV 100/200: 4-40 [M3], HVP 300: 10-32 [M5]

The model number for the HVP Series High Vacuum Venturi Pumps consists of the base model acronym (HVP100, 200 or 300) plus four alphanumeric clusters. These clusters designate the switch or sensor options and the vacuum gauge option. Refer to the chart below for an example of model number HVP-100-EP-ST2-VSMN-QD-6-GP-VG-150-CBM . This is a HVP-100 pump a VSMP vacuum switch with 6" pigtail quick disconnect and a VG-150-CBM vacuum gauge (center back mount). The  EP and GP denote the extra ports necessary to accommodate the vacuum switch and gauge. Note, part numbers beginning with I- denote a model with G port metric threads.

Item: HVP-100
