Threaded Venturi Cartridges

Bimba offers 16 performance levels with the C-TH Series Threaded Venturi Vacuum Cartridges that can be installed within a very tight envelope by easily threading them into an OEM threaded cavity. All cartridges have the same unique non-clogging, dirt tolerant design. These Threaded Venturi Vacuum Cartridges offer a wide range of performance levels enabling you to optimize performance based on desired vacuum level, vacuum flow, evacuation speed and air consumption.

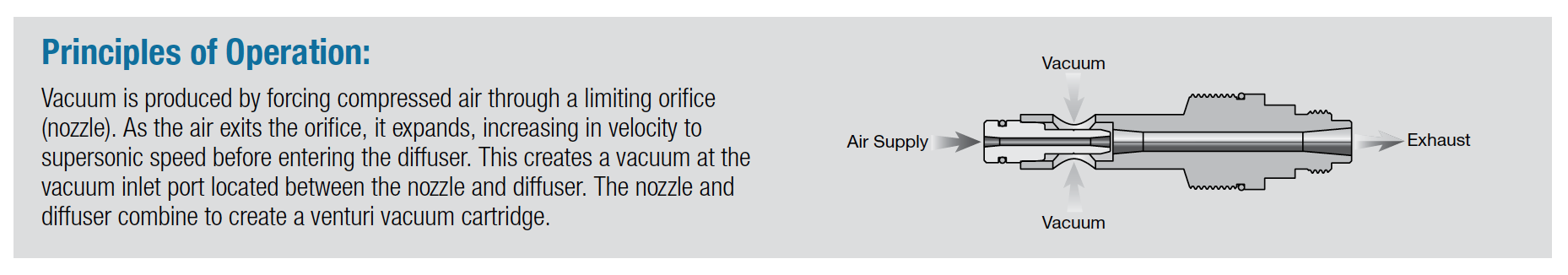

  • Saves space – no need for an external pump, install close to vacuum point
  • High Productivity – powerful vacuum up to 28”Hg [948mbar] to hold parts tight
  • Compact & lightweight – reduces overall equipment weight
  • Efficient – minimal air consumption, high performance
  • Performance Optimization – precise control of flow and vacuum level
  • Available in a range of materials

Threaded Cartridge Pump Standard Specifications

Cartridge Material: Standard: Anodized Aluminum, Buna-N O-rings
Optional Materials: Stainless Steel, PVC, Peek, Teflon®, Delrin®
O-rings available in additional materials - Consult factory for availability
Medium: Filtered (50 micron) un-lubricated, non-corrosive dry gases
Operating Temperature: -30° to ~250°F [-34° to ~121°C]
Operating Pressure: 80 PSI [5.5 bar] or 60 PSI [4.1 bar] – Consult Factory for other operating pressures


Mid Series Threaded Cartridges Operating and Installation Requirements

Cartridge Size: C60 (M, H)-TH and C90 (L, M, H)-THC100 (L, M, H)-TH and C150 (L, M, H)-TH

Supply Line:1/4” O.D. [6mm] tube3/8” O.D. [10mm] tube

Vacuum Line:1/4” O.D. [6mm] tube3/8” O.D. [10mm] tube

Vacuum Line Filtration: Typically vacuum filters are not required, if desired Bimba recommends model VF125LPM (see In-Line Filter Page)


Max Series Threaded Cartridges Operating and Installation Requirements

Cartridge Size: C200 (L, M, H)-THC250 (L, M, H)-TH

Supply Line:3/8” O.D. [10mm] tube3/8” O.D. [10mm] tube

Vacuum Line:3/8” O.D. [10mm] tube3/8” O.D. [10mm] tube

Vacuum Line Filtration: Typically vacuum filters are not required, if desired Bimba recommends model VF375LPM (see In-Line Filter Page)


Max Series Threaded Cartridges Operating and Installation Requirements

Cartridge Size: C300 (L, M, H)-THC350 (L, M, H)-TH

Supply Line:1/2” O.D. [12mm] tube1/2” O.D. [12mm] tube

Vacuum Line:1/2” O.D. [12mm] tube1/2” O.D. [12mm] tube

Vacuum Line Filtration: Typically vacuum filters are not required, if desired Bimba recommends model VF500LPM (see In-Line Filter Page)​


Compliance
